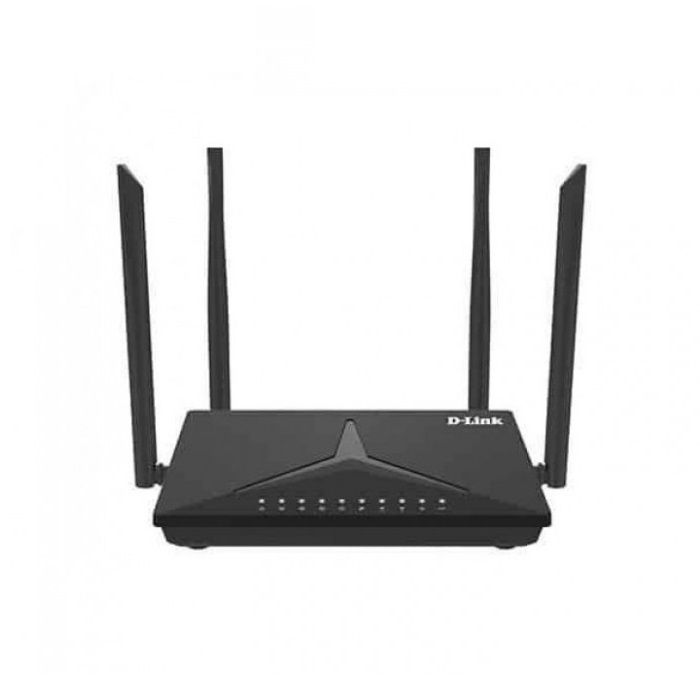

D-Link’s DWR-M920 4G N300 LTE Router allows you to access mobile broadband networks from anywhere. Once connected, you can check e-mail, surf the web, and stream media. Use your carrier’s SIM/UICC card to share your 3G/4G Internet connection through a secure wireless network or by using any of the three 10/100 Ethernet ports.
Fast Mobile Internet
The DWR-M920 lets you connect to your 3G/4Gmobile connection with fast downlink speeds of up to 150 Mbps and uplink speeds up to 50 Mbps, giving you the speed you need for fast, responsive Internet access. Surf the web with ease and stream music and video over the Internet to your PCs and mobile devices.
Easy to Set Up and Use
The DWR-M920 can be installed quickly and easily almost anywhere. It can be configured through The DWR-M920 utilizes dual-active Firewalls (SPI and NAT) to prevent potential attacks across the lmost any web browser without the need for special software. This router makes it possible to stay connected, even when conventional broadband services are unavailable
Wi-Fi | • 2T2R 2.4GHz 802.11b/g/n, 300Mbps | |
Device Interfaces | • 1 x LTE interface • 3 x RJ45 10M/100M LAN Ethernet interfaces • 1 x RJ45 10M/100M WAN Ethernet interfaces • 1 x reset button • 1 x WPS button • 1 x Power jack • 1 x Power switch | |
Wi-Fi Antenna | • 2 x 5dBi external antenna | |
LTE Antenna | • 2 x 5dBi external antenna | |
DWR-M920 | • WCDMA: B1/8 • FDD LTE: B1/B3/B5/B7/B8/B20 • TDD LTE: B38/40/41 | |
Standards | • 802.11b/g/n • 2.4 ~ 2.4835GHz | |
Modulation Schemes | • OFDM = BPSK, QPSK, 16-QAM, 64-QAM • DSSS = DBPSK, DQPSK, CCK | |
Transfer Rate | • HT20: up to 144 Mbps • HT40: up to 300 Mbps | |
Operating Temperature | • 0°C ~ 40°C | |
Storage Temperature | • -20°C ~ 90°C | |
Operating Humidity | • 5% ~ 95% (typical) | |
Power Supply | • 12V/1A | |
Regulation Compliance | • CE | |
Safety Regulations | • UL | |
Green Standard | • RoHS |
GTIN | 0790069454264 |
---|---|
Manufacturer | D-LINK |
Model | DWR-M920 |
Color | Black |
Dimensions | 44L x 121W x 117H millimeters |
Weight | 0.500000 |
Warranty | 1 Year |
