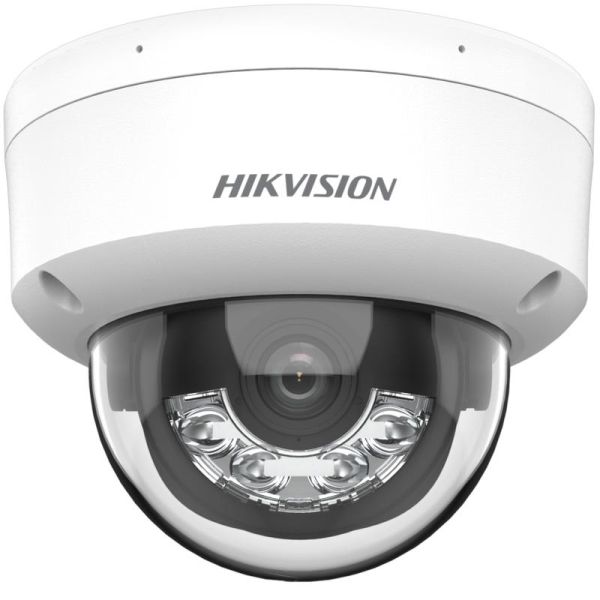

Hikvision DS-2CD1123G2-LIU 2 MP Smart Hybrid Light Fixed Dome Network Camera | DS-2CD1123G2-LIU

Hikvision DS-2CD1123G2-LIU 2 MP Smart Hybrid Light Fixed Dome Network Camera

Camera Specifications

Camera
Image Sensor: 1/2.9" Progressive Scan CMOS
Max Resolution: 1920 × 1080
Min Illumination:
Color: 0.005 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment:
Pan: 0° to 355°
Tilt: 0° to 75°
Rotate: 0° to 355°

Lens
Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV:
2.8 mm:
Horizontal FOV: 103°
Vertical FOV: 56°
Diagonal FOV: 121°

DORI (Detection, Observation, Recognition, Identification)
2.8 mm:
Detection (D): 45 m
Observation (O): 18 m
Recognition (R): 9 m
Identification (I): 4 m

Illuminator
Supplement Light Type: IR, White Light
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream:
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream:
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression:
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Region of Interest (ROI): 1 fixed region for main stream

Audio
Audio Type: Mono sound
Environment Noise Filtering: Yes
Audio Sampling Rate: 8 kHz / 16 kHz
Audio Compression: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
Audio Bit Rate:
64 Kbps (G.711 ulaw)
64 Kbps (G.711 alaw)
16 Kbps (G.722.1)
16 Kbps (G.726)
32 to 160 Kbps (MP2L2)
16 to 64 Kbps (AAC-LC)

Network
Security:
Password protection
Complicated password
Watermark
Basic and digest authentication for HTTP, WSSE
Security audit log
Host authentication (MAC address)
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
User/Host: Up to 32 users (3 user levels: administrator, operator, user)
Client: iVMS-4200, Hik-Connect
Web Browser:
Plug-in required for live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR): Digital WDR
SNR: ≥ 52 dB
Day/Night Switch: Day, Night, Auto, Schedule
Image Enhancement: BLC, HLC, 3D DNR
Image Settings: Adjustable by client software or web browser (rotate mode, saturation, brightness, contrast, sharpness, gain, white balance)
Privacy Mask: 4 programmable polygon privacy masks

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot supporting microSD/microSDHC/microSDXC (up to 512 GB)
Built-in Microphone: Yes
Reset Key: Yes (for model -F)

Event
Basic Events:
Motion detection (supports alarm triggering by specified target types: human, vehicle)
Video tampering alarm
Exception
Linkage Options:
Upload to FTP/memory card (-F)
Send email
Notify surveillance center
Trigger recording (-F)
Trigger capture

General
Power:
12 VDC ± 25%, 0.5 A, max. 6 W (Ø 5.5 mm coaxial power plug, reverse polarity protection)
PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material: Metal & Plastic
Dimensions:
Camera: Ø121.4 mm × 97.7 mm (Ø4.8" × 3.8")
Package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight:
Approx. 550 g (1.2 lb)
With Package: Approx. 800 g (1.8 lb)
Storage Conditions:
-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Startup and Operating Conditions:
-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Languages Supported: English, Ukrainian

General Functions
Heartbeat
Anti-banding
Mirror
Password protection
Password reset via email
