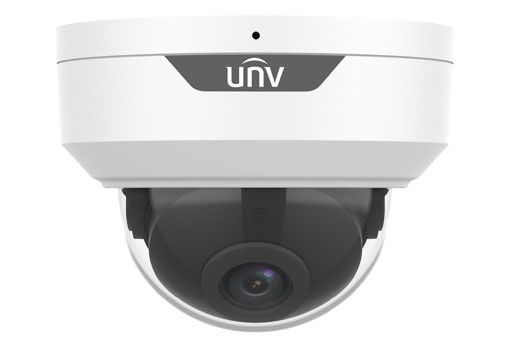

UNV IPC325LE-ADF28(40)K-G 5MP HD Vandal-resistant IR Fixed Dome Network Camera

$73.75
In stock
Warranty
1 Year
SKU
IPC325LEADF2840KG
Brand
This product is fulfilled by seller
Quick Overview

• High quality image with 5MP, 1/2.7"CMOS sensor
• 5MP (2880*1620)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Easystar technology ensures high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply
• 3-Axis

Sold By
SN-1

Estimated delivery to UAE 1:2 work days

To other countries 3:5 work days

  • Returnable 7 Days Returnable We returns for most items within 7 days of receipt of shipment.
  • delivery Fast Shipping & Return Fast Shipping & Return to UAE 1:2 work days and other countries 3:5 work days
  • original 100 Original Product
  • Secure transaction Secure Transaction
Payment Godukkan

   Camera
      Sensor: 1/2.7", 5.0 megapixel, progressive scan, CMOS
      Minimum Illumination: Support Easystar: Colour: 0.003 lux (F1.6, AGC ON)
                          0Lux with IR on
      Day/Night: IR-cut filter with auto switch (ICR)
      Shutter: Auto/Manual, 1 ~ 1/100000s
      Adjustment angle: Pan: 8°~360°, Tilt: 0° ~ 68°, Rotate: 10° ~ 360°
      S/N: >56dB
      WDR: 120dB

   Lens
      Lens Type: 2.8mm @F1.6, 4.0mm @F1.6
      Iris: Fixed
      Angle of view (H): 112.9°, 91.2°
      Angle of view (V): 59.1°, 47.9°
      Angle of view (D): 121.2°, 95.9°

   DORI
      DORI Distance:
         Lens (mm): 2.8, 4.0
         Detect (m): 63.0, 90.0
         Observe (m): 25.2, 36.0
         Recognize (m): 12.6, 18.0
         Identify (m): 6.3, 9.0

   Illuminator
      IR Range: Up to 30m (98ft) IR range
      Wavelength: 850nm
      IR On/Off Control: Auto/Manual

   Video
      Video Compression: Ultra 265, H.265, H.264, MJPEG
      H.264 code profile: Baseline profile, Main profile, High profile
      Frame Rate:
         Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps
         Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps
      Video Bit Rate: 128 Kbps~16 Mbps
      U-code: Support
      OSD: Up to 4 OSDs
      Privacy Mask: Up to 4 areas
      ROI: Up to 8 areas
      Video stream: Dual streams

      White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
      Digital noise reduction: 2D/3D DNR
      Smart IR: Supported
      Flip: Normal/Vertical/Horizontal/180°/90° Clockwise/90° Anti-clockwise
      HLC: Supported
      BLC: Supported
      Defog: Digital Defog

   Events
      Basic Detection: Cross line, intrusion (based on human body detection), motion detection, Ultra motion detection, tampering alarm, audio detection
      General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

   Audio
      Audio Compression: G.711U, G.711A
      Audio Bitrate: 64 Kbps
      Two-way Audio: N/A
      Suppression: Support
      Sampling Rate: 8KHZ

   Storage
      Edge Storage: Micro SD, up to 256 GB
      Network Storage: ANR, NAS (NFS)

   Network
      Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
      Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
      User/Host: Up to 32 users. 2 user levels: administrator and common user
      Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
      Client: EZStation, EZView, EZLive
      Web Browser:
         Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
         Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

   Interface
      Audio I/O: N/A
      Alarm I/O: N/A
      Serial Port: N/A
      Built-in Mic: Support
      Built-in Speaker: N/A
      WIFI: N/A
      Network: 1 * RJ45 10M/100M Base-TX Ethernet
      Video Output: N/A

   Certification
      EMC:
         CE-EMC (EN 55032: 2015+A1:2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11:2020)
         FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
      Safety:
         CE LVD (EN 62368-1:2014+A11:2017)
         CB (IEC 62368-1:2014)
         UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
      Environment:
         CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
      Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013), IK10 (IEC 62262:2002)

   General
      Power: DC 12V±25%, PoE (IEEE 802.3af)
      Power consumption: Max 4.5W
      Power Interface: Ø 5.5mm coaxial power plug
      Dimensions (Ø x H): Φ109 x 83mm (Ø4.3” x 3.3”)
      Weight: 0.36kg (0.79lb)
      Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
      Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
      Surge Protection: 4KV
      Reset Button: N/A

More Information
ManufacturerUNV
ModelIPC325LE-ADF28(40)K-G 5MP
ColorWhite
DimensionsΦ109 x 83mm (Ø4.3” x 3.3”)
Weight0.360000
Warranty1 Year
