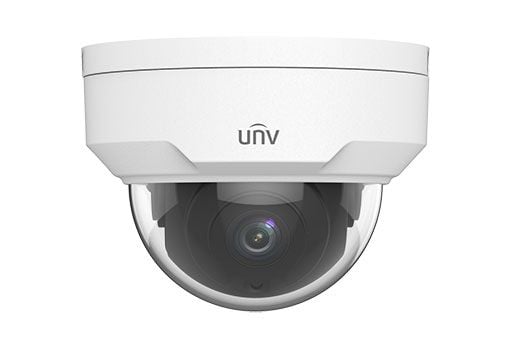

UNV IPC322LB-SF28-A 2MP Vandal-resistant Network IR Fixed Dome Camera | IPC322LB-SF28-A
Specifications:
Brand : UNV
Model : IPC322LB-SF28A
Color: White
Camera Specifications
Sensor:
1/2.8", progressive scan, 2.0 megapixel, CMOS
Minimum Illumination:
Color: 0.01 Lux (F1.8, AGC ON)
0 Lux with IR
Day/Night:
IR-cut filter with auto switch (ICR)
Shutter:
Auto/Manual, 1 ~ 1/100000 s
Adjustment Angle:
Pan: 3° to 360°
Tilt: 0° to 75°
S/N Ratio:
52 dB
WDR:
120 dB
Lens Specifications
Lens Type:
2.8 mm and 4.0 mm @1.8, Fixed-focal
Lens Mount:
M12
Angle of View:
Horizontal (H):
2.8 mm: 106.7°
4.0 mm: 87.5°
Vertical (V):
2.8 mm: 57.1°
4.0 mm: 46.3°
Diagonal (O):
2.8 mm: 115.7°
4.0 mm: 92.4°
DORI Specifications
DORI Distance (Lens mm):
2.8 mm:
Detect: 43.4 m
Observe: 17.4 m
Recognize: 8.7 m
Identify: 4.3 m
4.0 mm:
Detect: 62.1 m
Observe: 24.8 m
Recognize: 12.4 m
Identify: 6.2 m
Illuminator
IR Range:
Up to 30 m (98 ft)
Wavelength:
850 nm
IR On/Off Control:
Auto/Manual
Video Specifications
Video Compression:
Ultra 265, H.265, H.264
H.264 Code Profile:
Baseline profile, Main profile, High profile
Frame Rate:
Main Stream: 1080P (1920 × 1080), Max 30 fps; 720P (1280 × 720), Max 30 fps
Sub Stream: D1 (720 × 576), Max 30 fps; 640 × 360, Max 30 fps; 2CIF (704 × 288), Max 30 fps; CIF (352 × 288), Max 30 fps
Video Bit Rate:
128 Kbps ~ 6 Mbps
OSD:
Up to 4 OSDs
Privacy Mask:
Up to 4 areas
ROI:
Up to 8 areas
Motion Detection:
Up to 4 areas
Image Specifications
White Balance:
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Settings:
Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital Noise Reduction:
2D/3D DNR
Smart IR:
Supported
Flip:
Normal/Vertical/Horizontal/180°
Dewarping:
N/A
HLC:
Supported
BLC:
Supported
Defog:
Digital Defog
Network Specifications
Protocols:
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP
Compatible Integration:
API, SDK
User/Host:
Up to 32 users (2 user levels: administrator and common user)
Security:
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client:
EZStation, EZView, EZLive
Web Browser:
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
Interface
Network:
1 × RJ45 10M/100M Base-TX Ethernet
Certifications
EMC:
FCC: FCC Part 15
Safety:
CE: EN 60950-1
UL: UL60950-1
IEC 60950-1
General Specifications
Power:
DC 12V ± 25%, PoE (IEEE 802.3af)
Power Consumption: Max 5.0 W
Power Interface:
Ø 5.5 mm coaxial power plug
Dimensions:
Ø 109 × 81 mm (Ø 4.3” × 3.2”)
Weight:
0.35 kg (0.77 lb)
Material:
Metal + Plastic
Working Environment:
-30°C to 60°C (-22°F to 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment:
-30°C to 60°C (-22°F to 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection:
4 KV
Reset Button:
N/A
Ingress Protection:
Ingress Protection: IP67
Vandal Resistant: IK10
