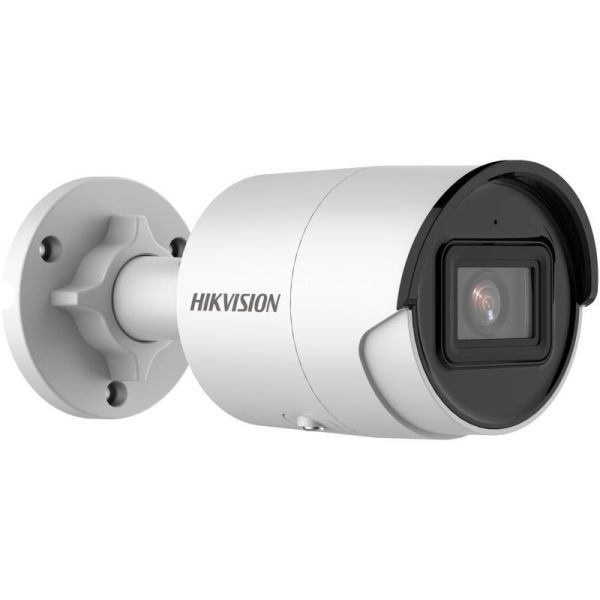

Hikvision DS-2CD2063G2-I(U) 6 MP AcuSense Fixed Bullet Network Camera

Hikvision DS-2CD2063G2-I(U) 6 MP AcuSense Fixed Bullet Network Camera

Camera Specifications:

Image Sensor:

• Type: 1/2.4" Progressive Scan CMOS
• Max Resolution: 3200 × 1800

Illumination:

• Min. Illumination:
  • Color: 0.005 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• IR Wavelength: 850 nm
• Supplement Light: Up to 40 m (Smart Supplement Light)

Shutter Time:

• Range: 1/3 s to 1/100,000 s

Day & Night:

• IR cut filter

Lens:

• Lens Type: Fixed focal lens (2.8 mm, 4 mm, 6 mm options)
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
  • 4 mm: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
  • 6 mm: Horizontal FOV 51°, Vertical FOV 26°, Diagonal FOV 59°
• Lens Mount: M12
• Aperture: F1.6

DORI (Detection, Observation, Recognition, Identification):

• 2.8 mm:
  • Detection (D): 76 m,
  • Observation (O): 30 m,
  • Recognition (R): 15 m,
  • Identification (I): 7 m
• 4 mm:
  • D: 115 m, O: 45 m, R: 23 m, I: 11 m
• 6 mm:
  • D: 164 m, O: 65 m, R: 32 m, I: 16 m

Pan/Tilt/Rotate:

• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotate: 0° to 360°

Video Specifications:

Main Stream:

• 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression:

• Main Stream: H.265/H.264/H.264+/H.265+
• Sub-stream: H.265/H.264/MJPEG
• Third Stream: H.265/H.264

Video Bit Rate:

• Range: 32 Kbps to 16 Mbps
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding

Region of Interest (ROI):

• 1 fixed region for main and sub-streams

Audio Specifications:

Audio Compression:

• G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

Audio Bit Rate:

• G.711ulaw/G.711alaw: 64 Kbps
• G.722.1/G.726: 16 Kbps
• AAC-LC: 16 to 64 Kbps
• MP2L2: 32 to 192 Kbps
• MP3: 8 to 320 Kbps

Audio Sampling Rate:

• 8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz

Environment Noise Filtering: Yes

Network Specifications:

Protocols:

• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Simultaneous Live View: Up to 6 channels

API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

User/Host: Up to 32 users (Administrator, Operator, User)

Security Features:

• Password protection, complicated password, HTTPS encryption, 802.1X authentication
• IP address filter, Watermark, Security audit log
• TLS 1.1/1.2/1.3, MAC address authentication

Network Storage:

• NAS (NFS, SMB/CIFS), Auto network replenishment (ANR)

Web Browser:

• Plug-in required for IE 10/11
• Plug-in-free live view: Chrome 57+, Firefox 52+, Edge 89+

Image Settings:

• Parameters: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night: Auto, Schedule, Day, Night
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks

Physical Specifications:

Power:

• 12 VDC ± 25%, 0.5 A, max. 6 W
• PoE: IEEE 802.3af, Class 3, max. 7.2 W

Dimensions:

• Camera: Ø70 mm × 161.7 mm (Ø2.8" × 6.4")
• Package: 216 mm × 121 mm × 118 mm (8.6" × 4.8" × 4.7")

Weight:

• Camera: Approx. 485 g (1.1 lb)
• With Package: Approx. 744 g (1.6 lb)

Storage Conditions:

• Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Humidity: 95% or less (non-condensing)

Operating Conditions:

• Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Humidity: 95% or less (non-condensing)

General Features:

• Heartbeat, Mirror, Password Reset via Email, Pixel Counter, Anti-flicker
• Language Support: 33 languages including English, Russian, German, Spanish, French, Chinese, Japanese, and more

Approval Certifications:

• EMC: FCC, CE-EMC, RCM, IC, KC
• Safety: UL, CB, CE-LVD, BIS
• Environmental: CE-RoHS, WEEE, Reach

Protection Rating: IP67 (IEC 60529-2013)
