View 170 TG ARGB Micro Chassis

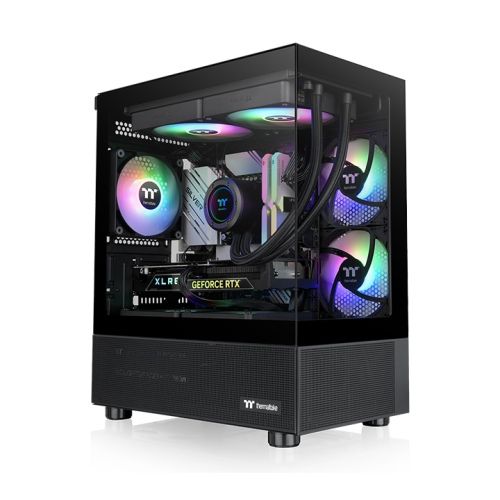

Built for amazing views, the View 170 TG ARGB Micro Chassis is an M-ATX case that features tempered glass front and left panels, and comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed.
View 170 TG ARGB Micro Chassis
Built for amazing views, the View 170 TG ARGB Micro Chassis is an M-ATX case that features tempered glass front and left panels, and comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to seven 120mm fans can be installed in the chassis, and up to a 280mm/240mm radiator can be placed on the top of the View 170 TG ARGB Micro Chassis.
Tempered Glass Front and Left Panels
The View 170 TG ARGB Micro Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.
Up to a 280mm/240mm Radiator
Providing good cooling support, users can choose to place a 280mm/240mm radiator on the top of the View 170 TG ARGB Micro Chassis.
Three Hydraulic Bearing 120mm ARGB Lite Fans Pre-installed
The View 170 TG ARGB Micro Chassis comes with three Hydraulic Bearing 120mm ARGB Lite Fans at the motherboard side and the rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Flexibility to Build Your Best
The View 170 TG ARGB Micro Chassis offers good expandability. It can support a CPU cooler with a maximum height of 160mm, VGA placement up to 340mm in length, a power supply up to 180mm in length. Optimized for excellent cooling performance, the case comes with three Hydraulic Bearing 120mm ARGB Lite Fans, and up to seven 120mm fans can be installed. For radiator compatibility, it can support up to a 280mm/240mm on top, giving more options for high-end expansion!
How Much Storage Is Totally Up To You
For storage compatibility, the View 170 TG ARGB Micro Chassis gives maximum support of up to two 2.5‘’ SSDs and one 3.5‘’ HDD in total.
Handy I/O Ports
Two USB 3.0 ports and an HD audio port are located on the top panel for instant access when needed
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
| GTIN | 841163079629 |
|---|---|
| Weight | 6.200000 |
| Manufacturer | Thermaltake |
| Dimensions | 420mm (L) x 210mm (W) x 408mm (H) |
| Main Input Voltage | 5V DC |
| Front Panel | 3mm Tempered Glass x 2 |
| Top Panel | 3mm Tempered Glass x 2 |
| Case Type | Micro Case |
| Motherboard Support | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
| Fan Support | Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 2 x 120mm, 1 x 120mm Rear: 1 x 120mm Power Cover: 2 x 120mm, 1 x 120mm |
| Cooling System | Right(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2 Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| Radiator Support | Top: 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
| Clearance | CPU cooler max height: 160mm VGA max length: 340mm PSU max length: 180mm |
